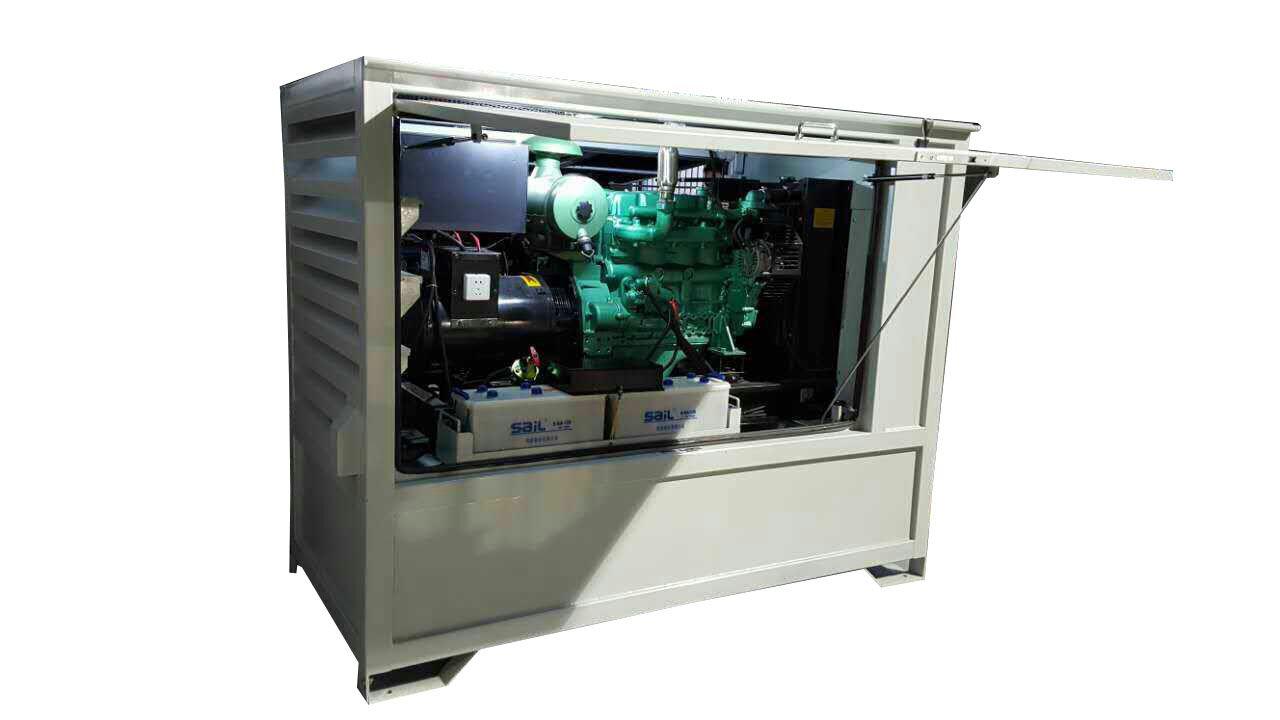

基站智能一体化备用电站
| Gen-set Specifications & Technical Features | |
| Gen-set Model机组型号 | YC10GF |
| Gen-set Producer机组产地 | YUCHAI |
| Rated Power 额定功率 | 10KW/12.5KVA |
| Standby Power备用功率 | 11KW/13.8KVA |
| Rated Voltage额定电压 | 400/230 |
| Rated Frequency额定频率 | 50 HZ |
| Rated Speed额定转速 | 1500 RPM |
| Continious Run Time | 24 HOURS |
| Fuel Consumption(Rated）燃油消耗率(额定) g/kW•h | 210 |
| Oil Consumption（Rated）燃油消耗率(额定) g/kW• | 0.5 |
| Fuel tank capacity油箱容量 | 800 L |
| Maintenance cycle 维护周期 | 1000 HOURS |
| Noise 噪音 | 85 DB(A) |
| Outline Dimensions 外形尺寸 （LXWXH） | 2000X950X1852 MM |
| Weight重量 | 930 KG |
| Engine Features发动机技术参数 | |
| Brand/Origin品牌/原产地 | YUCHAI |
| Number of Cylinders缸数 | 4 |
| Stroke冲程 | 4 |
| Displacement排量 | 2.088 L |
| Rated Power额定功率 | 17.5 KW |
| Rated Frequency备用功 | 19 KW |
| Speed转速 | 1500 RPM |
| Starting Method启动方式: | DC 12 V |
| Aspiration进气方式 | Naturally Aspirated |
| Cooling冷却方式 | Water-cooled |
| Oil pan capacity油底壳容量 | 8.6 L |
| Cooling water capacity冷却水容量 | 10.9 L |
| Alternator Features发电机技术参数 | |
| Brand品牌 | Marathon(SHANG HAI) |
| Rated Power 额定功率 | 10.8KW/13.5KVA |
| Standby备用功率 | 11.8KW/14.8KVA |
| Insulation Grade绝缘等级 | H |
| Protection Grade防护等级 | IP21 |
| Excitation励磁方式 | Brushless |
| Power factor额定功率因数（滞后 lag） | 0.8 |

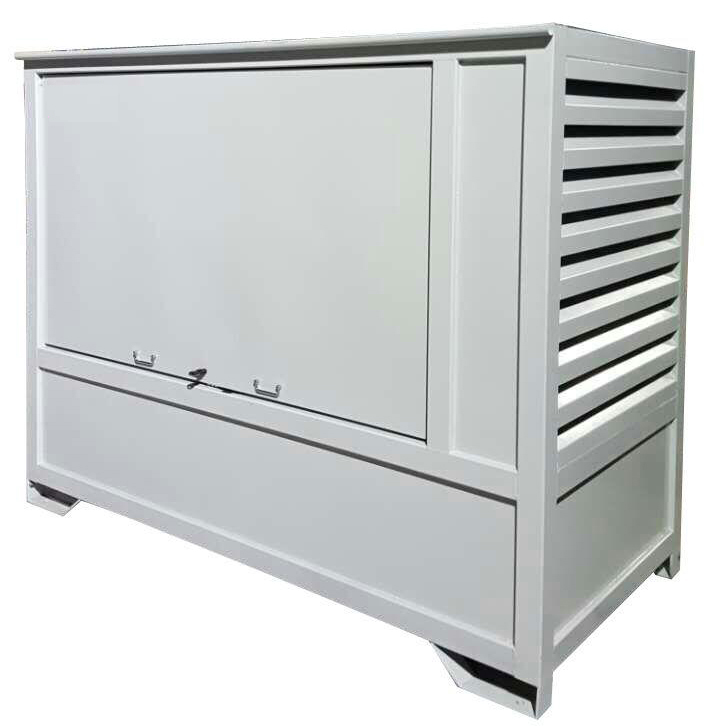

| Cabinet Feature 智能机柜参数 | ||
| Set Start Mode机组停电启动方式 |
Automatic、Manual、Maintenance 自动、手动、维护 |
|
| Supervision Method机组监控方式 |
Local LCD Display、Data Transmission unit for Centralized Management 本地LCD显示、监控模块远程传送 |
|
|
Engine Supervision and display 发动机监测 |
Speed Oil Pressure WaterTemprature Fuel Level Battery Volt Running Hours 转速、油压、水温、燃油油位、电池电压、运行小时数 |
|
|
Alternator Supervision and display 发电机监测 |
Gen-set/Mains Frequency 3-Phase Volt and Current kW、PF、kVAR、kWh、kVAh、kVARh 机组/市电频率、机组/市电三相电压和三相电流、容量、有功功率、功率因数、无功功率、总有功、总容量、总无功 |
|
|
Set Supervision and display 机组监测信息 |
Oile Pressure Water Temprature Battery Voltage Water Level Fuel Level Key Authorization 油压、水温、启动电池电压、水位、油箱油位、机柜钥匙授权 |
|
|
Set Alarm 机组告警信息 |
Over/under speed Low Oil Pressure High Water Temperature Over/under Battery Volt Low water level Low fuel level Failed to start Over/under voltage Over current Over/under frequency Cabin door sensor 超速/欠速、油压低、水温高、启动电池电压过高/低、水位低、燃油位低、三次启动失败告警、过/欠电压、过电流、过/欠频率、机柜门磁开关、非法撞击 |
|
| Cabinet Load and Installation机柜装卸 |
Crane or Forklift Load and Unload Cabinet assemble 铲车或者吊车整机装卸、机柜可拆装 |
|
| 其他 |
Fuel fill inside Fuel tank washble 加油开关在机柜内、柴油箱可清洗、机柜防撬和防拆设计 |
|
